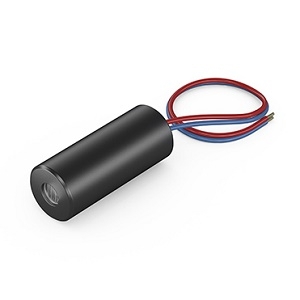

LG650-3-5(10x21)-F500

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The LG650-3-5(10x21)-F500 from Picotronic is a Laser with Wavelength 650 nm, Power 3 mW, Output Power (CW) 3 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for LG650-3-5(10x21)-F500 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LG650-3-5(10x21)-F500
  • Manufacturer
    Picotronic
  • Description
    Line laser module, red, 90°, 650nm, 3mW, 5V DC, 10x21mm, class 1

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Power
    3 mW
  • Output Power (CW)
    3 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.8 mrad
  • Beam Shape
    Line
  • Current
    15 to 40 mA
  • Laser Class
    Class I
  • Output Aperture
    5 mm
  • Voltage
    4.5 to 5.5 VDC
  • Note
    Material: Bronze, Cable length: 100 mm, Operating Distance: 0.5 m, Fan Angle: 90°, Thickness: 0.5 [email protected]

Physical Properties

  • Dimension
    Ø10 x 21 mm
  • Weight
    7 g

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
