LI650-2.5-3(8x26)45

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The LI650-2.5-3(8x26)45 from Picotronic is a Laser with Wavelength 650 nm, Power 2.5 mW, Output Power (CW) 2.5 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for LI650-2.5-3(8x26)45 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LI650-2.5-3(8x26)45
  • Manufacturer
    Picotronic
  • Description

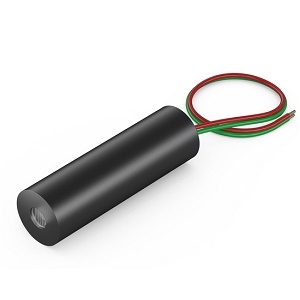

    Isolated Line laser module, red, 45°, 650nm, 2.5mW, 3V DC, 8x26mm, class 1

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Power
    2.5 mW
  • Output Power (CW)
    2.5 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    1.5 mrad
  • Beam Shape
    Line
  • Current
    15 to 48 mA
  • Laser Class
    Class I
  • Output Aperture
    3 mm
  • Voltage
    2.7 to 3.3 VDC
  • Note
    Material: Aluminium, Cable length: 100 mm, Operating Distance: 2 m, Fan Angle: 45°, Thickness: 1.5 mm@2m

Physical Properties

  • Dimension
    Ø8 x 26 mm
  • Weight
    3.5 g

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
