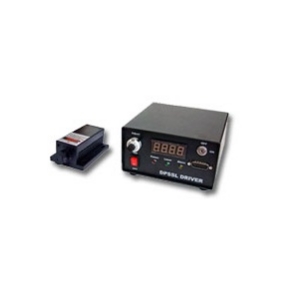

The RLTMDL-1550R-10-5 from Roithner Lasertechnik is a Laser with Wavelength 1550 nm, Power 10 mW, Output Power (CW) 10 mW, Operating Temperature 10 to 35 Degree C. More details for RLTMDL-1550R-10-5 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RLTMDL-1550R-10-5
  • Manufacturer
    Roithner Lasertechnik

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing, Communications
  • Operation Mode
    CW Laser
  • Wavelength
    1550 nm
  • Power
    10 mW
  • Output Power (CW)
    10 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Beam Shape
    Round
  • Connectors
    SMA-905
  • Warm up time
    5 min
  • Modulation Frequency
    1 to 30 kHz
  • Power Supply
    90 to 264 VAC
  • Voltage
    90 to 264 VAC
  • RoHS
    Yes

Physical Properties

  • Laser Head Dimension
    139 x 73 x 46 mm
  • Power Supply Dimension
    154 x 155 x 95 mm, 1333 x 130 x 65 mm, 100 x 60 x 56 mm
  • Beam Diameter
    2 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
