RLTMSL-532-100

768 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

The RLTMSL-532-100 from Roithner Lasertechnik is a Laser with Wavelength 532 nm, Power 100 mW, Output Power (CW) 100 mW, Operating Temperature 15 to 35 Degree C. More details for RLTMSL-532-100 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RLTMSL-532-100
  • Manufacturer
    Roithner Lasertechnik

General Parameters

  • Type
    Laser System

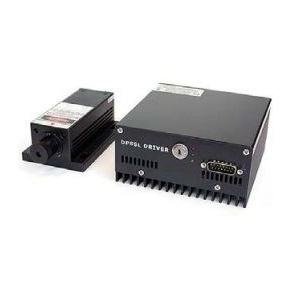

  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Automotive / Industrial & Manufacturing, Environmental, Defense / Military & Aerospace, Communications
  • Application
    Inspection & Measurement, Monitoring, Gas Sensing, Communication & Navigation, Surveillance, Optical Fiber Communication
  • Operation Mode
    CW Laser
  • Wavelength
    532 nm
  • Spectral Width :
    0.001 nm (Spectral Linewidth)
  • Power
    100 mW
  • Output Power (CW)
    100 mW
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Transverse Mode
    TEM00
  • Connectors
    SMA-905/FC
  • Warm up time
    10 min
  • Power Supply
    90 to 260VAC(PSU to FDA)
  • Voltage
    90 to 260VAC(PSU to FDA)
  • RoHS
    YeS

Physical Properties

  • Laser Head Dimension
    141 x 73 x 46 mm
  • Beam Diameter
    2 mm

Environmental Conditions

  • Operating Temperature
    15 to 35 Degree C

Technical Documents
