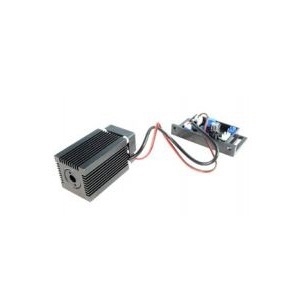

ULV-445-300

768 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

The ULV-445-300 from Roithner Lasertechnik is a Laser with Wavelength 445 nm, Power 300 mW, Output Power (CW) 300 mW. More details for ULV-445-300 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ULV-445-300
  • Manufacturer
    Roithner Lasertechnik

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Medical, Entertainment, Scientific / Research, Defense / Military & Aerospace, Communications
  • Operation Mode
    CW Laser
  • Wavelength
    445 nm
  • Power
    300 mW
  • Output Power (CW)
    300 mW
  • Fiber Coupled
    No
  • Laser Color
    Violet
  • Beam Shape
    Dot
  • Modulation Frequency
    20 kHz
  • Voltage
    12 VDC
  • RoHS
    Yes

Physical Properties

  • Laser Head Dimension
    65 x 33 x 33 mm
  • Power Supply Dimension
    72 x 35 x 28 mm
  • Beam Diameter
    2x4 mm

Technical Documents
Click to view more product details on manufacturer's website
