TEC-520-1590-30

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sacher Lasertechnik.

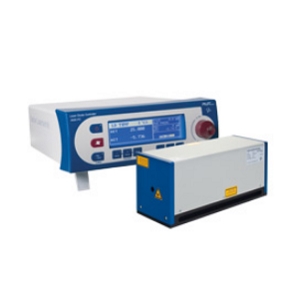

The TEC-520-1590-30 from Sacher Lasertechnik is a Laser with Wavelength 1520 nm, 1570 nm, 1590 nm, 1640 nm, Power 15 to 30 mW. More details for TEC-520-1590-30 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TEC-520-1590-30
  • Manufacturer
    Sacher Lasertechnik
  • Description
    1520 nm, 1570 nm, 1590 nm, 1640 nm CW Laser for Spectroscopy

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research
  • Application
    Spectroscopy
  • Operation Mode
    CW Laser
  • Wavelength
    1520 nm, 1570 nm, 1590 nm, 1640 nm
  • Spectral Width :
    100 kHz to 1 MHz
  • Power
    15 to 30 mW
  • Tunable
    No
  • Fiber Coupled
    Yes, No
  • Laser Color
    Near-Infrared
  • Polarization Orientation
    Linear
  • Polarization ratio :
    >100:1
  • Beam Quality Factor (M2) :
    <1.3
  • Note
    Thermal stability: <100 MHz/Degree C
