ALTAIR IR-1

Laser by Spark Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Spark Lasers.

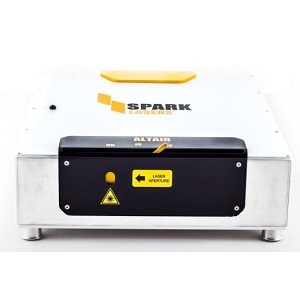

The ALTAIR IR-1 from Spark Lasers is a Laser with Wavelength 1040 nm, Power 1 W, Pulse Width 180 fs, Repetition Rate 80 MHz. More details for ALTAIR IR-1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ALTAIR IR-1
  • Manufacturer
    Spark Lasers
  • Description
    High-Power, High Repetition Rate Femtosecond Laser for Bioimaging

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Scientific / Research, Medical
  • Application
    Microscopy, Neuroscience, DNA Sequencing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1040 nm
  • Power
    1 W
  • Pulse Width
    180 fs
  • Repetition Rate
    80 MHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization Orientation
    Linear
  • Warm up time
    5 Min
  • Power Consumption
    400 W
  • Pointing Stability :
    25 µrad/Degree C
  • Interface
    USB, RS 232, TCP/IP
  • Power Supply
    100 to 240 VAC
  • RoHS
    Yes
  • Note
    Custom Pulse Duration of 150 fs Available

Physical Properties

  • Package
    Rack-Mount
  • Laser Head Dimension
    397 x 339 x 131 mm3
  • Laser Head Weight
    13 kg
  • Power Supply Dimension
    19”/3U rack
  • Power Supply Weight
    7.5 kg
  • Beam Diameter
    1 mm
  • Fiber length
    3 m

Environmental Conditions

  • Cooling Method
    Air Cooled
