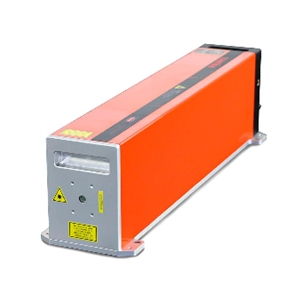

F10

Laser by SPT Laser
Request Quote

Note: Your Quotation Request will be directed to SPT Laser.

The F10 from SPT Laser is a Laser with Wavelength 10.6 µm, Power 1 to 100 W, Operating Temperature 5 to 45 Degree C. More details for F10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    F10
  • Manufacturer
    SPT Laser
  • Description
    10.6 µm CO2 Laser with 1 to 100 W Power

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Cutting, Marking, Drilling, Glass and Ceramic Processing, 3D Printer, fly marking
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    10.6 µm
  • Wavelength Accuracy
    ±0.1 nm
  • Power
    1 to 100 W
  • Technology
    Gas Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Polarization
    Vertical
  • Polarization Orientation
    Linear
  • Beam Divergence :
    <7 mrad
  • Beam Quality Factor (M2) :
    <1.2
  • Gain Medium Type
    Gas Laser
  • Duty Cycle :
    0 to 100%
  • Laser Cavity Material
    CO2
  • Laser Gain Medium
    Molecular Lasers
  • Beam Shape
    Elliptical
  • Current
    40 A
  • Modulation Frequency
    1 to 100 kHz
  • Power Stability
    <±7%
  • Voltage
    48 VDC ±0.5 VDC

Physical Properties

  • Dimension
    565.6 x 143 x 154.5 mm
  • Weight
    13.9 kg
  • Beam Diameter
    2 mm

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Relative Humidity
    <95%
  • Operating Temperature
    5 to 45 Degree C
Click to view more product details on manufacturer's website
