500-010005

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to The Optoelectronics Company Ltd.

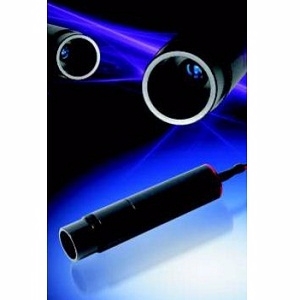

The 500-010005 from The Optoelectronics Company Ltd is a Laser with Wavelength 640 nm, Power 30 mW, Output Power (CW) 30 mW, Operating Temperature -10 to 50 Degree C, Storage Temperature -40 to 85 Degree C. More details for 500-010005 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    500-010005
  • Manufacturer
    The Optoelectronics Company Ltd
  • Description
    laser diode module, elliptical beam, ø12mm

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    Alignment, Cutting, Drilling, Inspection & Measurement
  • Operation Mode
    CW Laser
  • Wavelength
    640 nm
  • Power
    30 mW
  • Output Power (CW)
    30 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.6 x 0.3 mrad
  • Current
    100 mA
  • Power Stability
    <5%
  • Pointing Stability :
    <0.2mrad/Degree C
  • Voltage
    3.0 to 6.0 VDC

Physical Properties

  • Beam Diameter
    4 x 2 mm

Environmental Conditions

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C
