CW-4000MM-G

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to VONJAN Technology.

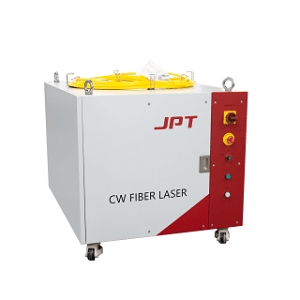

The CW-4000MM-G from VONJAN Technology is a Laser with Wavelength 1080 nm, Power 4000 W, Operating Temperature 0 to 40 Degree C, Storage Temperature -10 to 60 Degree C. More details for CW-4000MM-G can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CW-4000MM-G
  • Manufacturer
    VONJAN Technology
  • Description
    1080 nm Near-Infrared 4000 W CW Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Automotive
  • Application
    Welding, Cutting, Cleaning, Decoating
  • Operation Mode
    CW Laser
  • Wavelength
    1080 nm
  • Power
    4000 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Multi-mode
  • Laser Color
    Near-Infrared
  • Polarization Orientation
    Random
  • Laser Class
    Class 4
  • Modulation Frequency
    0 to 5 kHz
  • Power Consumption
    12000 W
  • Power Supply
    380 VAC
  • Note
    Power instability: 2%, Cooling power: 12 kW

Physical Properties

  • Package
    System
  • Dimension
    1127.5 x 862.5 x 865.6 mm (W x D x H)
  • Weight
    345 kg
  • Fiber diameter
    50 µm
  • Fiber length
    20 m

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -10 to 60 Degree C
