HP5-60G-520

Laser by World Star Tech
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to World Star Tech.

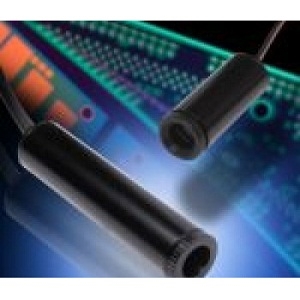

The HP5-60G-520 from World Star Tech is a Laser with Wavelength 520 +/-5 nm, Power 0.06 W, Operating Temperature 10 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for HP5-60G-520 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HP5-60G-520
  • Manufacturer
    World Star Tech

General Parameters

  • Type
    Laser Module, Alignment Laser
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    Test & Measurement, Inspection & Measurement, Alignment
  • Operation Mode
    CW Laser
  • Wavelength
    520 +/-5 nm
  • Power
    0.06 W
  • Tunable
    No
  • Fiber Coupled
    No
  • Mode
    Single Mode
  • Laser Color
    Green
  • Beam Divergence :
    1 milliradian
  • Current
    250 mA
  • Laser Class
    Class IIIB
  • Modulation Frequency
    1 MHz
  • Voltage
    3 to 5 Vdc

Physical Properties

  • Dimension
    15mm(D)x 51mm (L)

Environmental Conditions

  • Operating Temperature
    10 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
