YFPP-40-GR-SN0202W

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Wuhan Guangzhi Technology Co., Ltd.

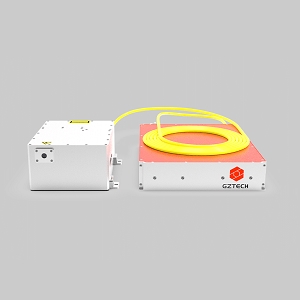

The YFPP-40-GR-SN0202W from Wuhan Guangzhi Technology Co., Ltd is a Laser with Wavelength 532 nm, Power >40 W, Pulse Energy >10 µJ, Pulse Width 1 to 2 ns, Repetition Rate 500 to 2000 kHz. More details for YFPP-40-GR-SN0202W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    YFPP-40-GR-SN0202W
  • Manufacturer
    Wuhan Guangzhi Technology Co., Ltd
  • Description
    532 nm Green Pulsed Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Entertainment, Scientific / Research, Medical
  • Application
    Holography, Raman spectroscopy, fluorescence excitation, medical, scientific research, bioengineering, etc
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Wavelength Accuracy
    ±0.2 nm
  • Spectral Width :
    <0.2 nm
  • Power
    >40 W
  • Pulse Energy :
    >10 µJ
  • Pulse Energy
    >10 µJ
  • Pulse Width
    1 to 2 ns
  • Repetition Rate
    500 to 2000 kHz
  • Tunable
    Yes
  • Fiber Coupled
    Yes
  • Laser Color
    Green
  • Beam Quality Factor (M2) :
    <1.1
  • Current
    <6 A
  • Power Consumption
    <300 W
  • Power Stability
    <5% rms
  • Voltage
    48 VDC
  • Note
    ON/OFF light response time: <20 µs

Physical Properties

  • Package
    Benchtop
  • Laser Head Dimension
    270 x 200 x 117 mm
  • Dimension
    420 x 318 x 75 mm
  • Weight
    <25 kg
  • Beam Diameter
    1 to 2 mm
  • Fiber length
    2 m

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Operating Temperature
    10 to 40 Degree C
  • Storage Temperature
    -20 to 60 Degree C
