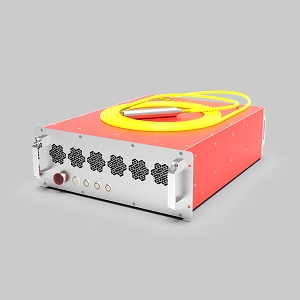

YFQCW-150-MM

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Wuhan Guangzhi Technology Co., Ltd.

The YFQCW-150-MM from Wuhan Guangzhi Technology Co., Ltd is a Laser with Wavelength 1075 to 1085 nm, Power 150 W (Pulse), 300 W (CW), Output Power (CW) 300 W, Output Power (Pulsed) 150 W, Pulse Energy 15 J. More details for YFQCW-150-MM can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    YFQCW-150-MM
  • Manufacturer
    Wuhan Guangzhi Technology Co., Ltd
  • Description
    1075 to 1085 nm Ultraviolet CW, Pulsed Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Precision welding and cutting applications of metals/ceramics and other materials
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    1075 to 1085 nm
  • Spectral Width :
    <5 nm
  • Power
    150 W (Pulse), 300 W (CW)
  • Output Power (CW)
    300 W
  • Output Power (Pulsed)
    150 W
  • Pulse Energy :
    15 J
  • Pulse Energy
    15 J
  • Pulse Width
    0.02 to 50 ms
  • Repetition Rate
    <20 kHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Ultraviolet
  • Polarization Orientation
    Random
  • Beam Divergence :
    <120 mrad
  • Beam Quality Factor (M2) :
    >3.5
  • Duty Cycle :
    <50%
  • Current
    <10 A
  • Power Consumption
    <2200 W
  • Power Stability
    <5% rms
  • Peak Power
    1500 W
  • Power Supply
    220 VAC
  • Note
    Laser switching ON/OFF time: <10 µs

Physical Properties

  • Package
    Benchtop
  • Dimension
    627 x 481 x 164 mm
  • Weight
    <45 kg
  • Beam Diameter
    6 mm
  • Fiber diameter
    50 µm
  • Fiber length
    5 m

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -10 to 60 Degree C
