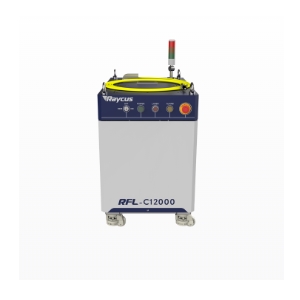

RFL-C12000S

Laser by Raycus
Request Quote

Note: Your Quotation Request will be directed to Raycus.

The RFL-C12000S from Raycus is a Laser with Wavelength 1080 nm (Emission), Power 12000 W, Operating Temperature 10 to 40 Degree C. More details for RFL-C12000S can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RFL-C12000S
  • Manufacturer
    Raycus
  • Description
    12000W Single Module CW Fiber Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Material processing, Cutting, Drilling, Welding
  • Operation Mode
    CW Laser, Modulated
  • Wavelength
    1080 nm (Emission)
  • Wavelength Accuracy
    ±5 nm
  • Power
    12000 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Single Mode
  • Laser Color
    Infrared
  • Polarization Orientation
    Random
  • Beam Quality Factor (M2) :
    6 to 9
  • Gain Medium Type
    Solid State Laser
  • Modulation Frequency
    5 kHz
  • Interface
    RS232, AD
  • Power Supply
    380±10% VAC, Three Phase-four Wire Connect

Physical Properties

  • Dimension
    560 x 1148 x 1269 mm
  • Weight
    250 kg
  • Fiber diameter
    50 µm (Core)
  • Fiber length
    20 m

Environmental Conditions

  • Cooling Method
    Water-cooled
  • Operating Temperature
    10 to 40 Degree C
