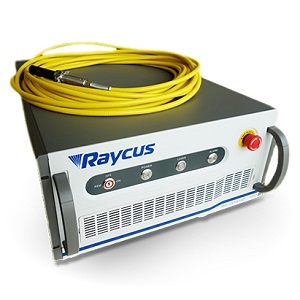

RFL-QCW450/1500

Laser by Raycus

Note: Your Quotation Request will be directed to Raycus.

The RFL-QCW450/1500 from Raycus is a Laser with Wavelength 1075 to 1085 nm, Power 1500 W, Output Power (Pulsed) 450 W, Output Power (CW) 500 W, Pulse Energy 45000 mJ. More details for RFL-QCW450/1500 can be seen below.

 Product Specifications

    Product Details

    • Part Number :
      RFL-QCW450/1500
    • Manufacturer :
      Raycus
    • Description :
      Quasi-Continuous Fiber Laser from 1075 to 1085 nm

    General Parameters

    • Configuration :
      Laser Head with Control Unit (Integrated)
    • Type :
      Laser System
    • Technology :
      Solid State Laser
    • Operation Mode :
      CW/Pulsed Laser
    • Wavelength :
      1075 to 1085 nm
    • Tunable :
      Yes
    • Fiber Coupled :
      Yes
    • Laser Color :
      Infrared
    • Power :
      1500 W
    • Output Power (Pulsed) :
      450 W
    • Output Power (CW) :
      500 W
    • Pulse Energy :
      45000 mJ
    • Pulse Width :
      0.05 to 50 mS
    • Application :
      Spot Welding, Seam Welding, Boring and Other Industrial Applications
    • Repetition Rate :
      0.5 to 5 kHz
    • Laser Gain Medium :
      YAG
    • Application Industry :
      Welding, Industrial
    • Beam Divergence :
      0.4, 2, 5 mrad
    • Power Consumption :
      2000 W
    • Power Stability :
      0.03
    • Pulse Energy :
      45000 mJ
    • Interface :
      RS232/AD
    • Power Supply :
      200 to 240 V

    Physical Properties

    • Dimension :
      485 x 240 x 680 mm
    • Weight :
      50 kg
    • Fiber diameter :
      25, 50, 100 um

    Environmental Conditions

    • Cooling Method :
      Water Cooling
    • Operating Temperature :
      10 to 40 Degree C
