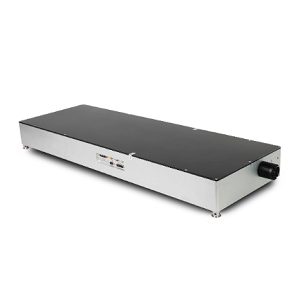

FemtoYL-UV-30/15

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Wuhan Yangtze Soton Laser.

The FemtoYL-UV-30/15 from Wuhan Yangtze Soton Laser is a Laser with Wavelength 343 nm, Power 15 to 30 W, Pulse Energy 30 to 60 µJ, Pulse Width 300 fs to 10 ps, Repetition Rate 25 kHz to 5 MHz. More details for FemtoYL-UV-30/15 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FemtoYL-UV-30/15
  • Manufacturer
    Wuhan Yangtze Soton Laser
  • Description
    15 to 30 W 343 nm Ultraviolet Pulsed Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Femtosecond Lasers, Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    OLED module cutting, 5G circuit material cutting (LCP, MPI), FPC material cutting, drilling, ITO drilling, scribing, Semiconductor cutting, scribing, Glass, sapphire drilling, scribing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    343 nm
  • Power
    15 to 30 W
  • Pulse Energy :
    30 to 60 µJ
  • Pulse Energy
    30 to 60 µJ
  • Pulse Width
    300 fs to 10 ps
  • Repetition Rate
    25 kHz to 5 MHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Ultraviolet
  • Polarization Orientation
    Linear
  • Beam Divergence :
    <2 mrad
  • Beam Quality Factor (M2) :
    <1.3
  • Connectors
    SMA
  • Laser Class
    Class 4
  • Power Consumption
    >960 W
  • Power Stability
    <2%
  • Peak Power
    100 to 200 MW
  • Interface
    RS232
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • Note
    Signal: TTL

Physical Properties

  • Package
    Benchtop
  • Dimension
    1200 x 410 x 141 mm
  • Beam Diameter
    2 mm
