MTE6070W1-WRC

490 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Marktech Optoelectronics.

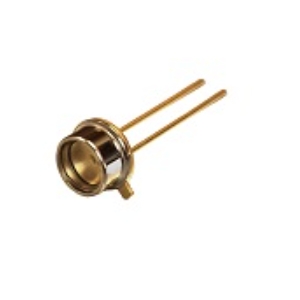

The MTE6070W1-WRC from Marktech Optoelectronics is a LED with Forward Voltage 2.7 V, Forward Current 50 mA, Reverse Current 100 µA, Wavelength 700 nm, Power 0.23 mW. More details for MTE6070W1-WRC can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MTE6070W1-WRC
  • Manufacturer
    Marktech Optoelectronics

General Parameters

  • Angle of Half Intensity :
    100 Degree
  • Colors
    Red
  • pb Free
    Yes
  • Peak Pulse Current
    0.5 A
  • Power Dessipation
    140 mW
  • RoHS
    Yes
  • Forward Voltage
    2.7 V
  • Forward Current
    50 mA
  • Reverse Current
    100 µA
  • Wavelength
    700 nm
  • Power
    0.23 mW
  • Reverse Voltage
    5 V

Physical Properties

  • Package
    TO-18 Metal Can Package

Environmental Conditions

  • Junction Temperature
    100 Degree C
  • Soldering Temperature
    260 Degree C
  • Operating Temperature
    -20 to 80 Degree C
  • Storage Temperature
    -30 to 100 Degree C

Applications

  • Application
    Optical Sensors, Optical Switches, Medical Application
