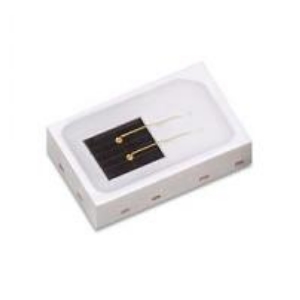

LUXEON IR 2720 Line

LED by Lumileds
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to Lumileds.

The LUXEON IR 2720 Line from Lumileds is a LED with Forward Voltage 2.9 to 3.7 V, Forward Current 1500 mA, Wavelength 850 and 940 nm, Operating Temperature -40 to 105 Degree C, Storage Temperature -40 to 105 Degree C. More details for LUXEON IR 2720 Line can be seen below.

Product Specifications View similar products

Product Details

  • Part Number
    LUXEON IR 2720 Line
  • Manufacturer
    Lumileds
  • Description
    High Power Infrared Emitters Optimized for Cost Conscious Applications

General Parameters

  • Colors
    Infrared
  • Configuration
    Multi-Emitter
  • Peak Pulse Current
    3000 mA
  • RoHS
    Yes
  • Radiant Flux/Power
    1000 to 1300 mW
  • Thermal Resistance
    4 °C/W
  • Viewing Angle
    120 Degrees
  • Forward Voltage
    2.9 to 3.7 V
  • Forward Current
    1500 mA
  • Wavelength
    850 and 940 nm
  • Note
    Radiant Intensity: 408 to 425 mW/sr, FWHM: 29 to 39 nm, Rise/Fall Time: 12/16 ns

Physical Properties

  • Size
    2.75 mm x 2.00 mm

Environmental Conditions

  • Junction Temperature
    145 °C
  • Operating Temperature
    -40 to 105 Degree C
  • Storage Temperature
    -40 to 105 Degree C

Applications

  • Application
    Biometric Identification, Machine Vision, Surveillance / CCTV

Technical Documents
Click to view more product details on manufacturer's website
