HMC871

Optical Modulator Driver by Analog Devices
6 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Analog Devices.

The HMC871 from Analog Devices is a Optical Modulator Driver with Data Rate 20 to 22.5 Gb/s, Gain 10 to 16 dB, Rise/Fall Time 20 psec, Output Voltage/Amplitude 2.5 to 4 Vpp, Supply Voltage 8 V. More details for HMC871 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HMC871
  • Manufacturer
    Analog Devices
  • Description

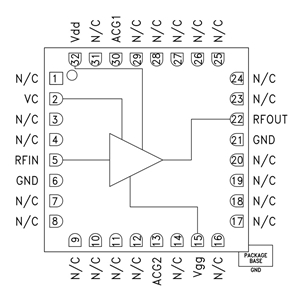

    EA Optical Modulator Driver SMT, DC - 20 GHz

Temperature

  • Channel Temperature
    175 Degree C
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -65 to 150 Degree C

Physical Properties

  • Package Size
    5 x 5 mm

Applications

  • Applications
    The HMC871LC5 is ideal for: , SONET OC-192 & SDH-STM-64 Transmission Systems , 10 GbE Transmitters , 10 Gbps VSR Modules , Pre-driver for 40 Gbps DQPSK Modules , Broadband Gain Block for Test & Measurement Equipment

General Parameters

  • Data Rate
    20 to 22.5 Gb/s
  • Gain
    10 to 16 dB
  • Rise/Fall Time
    20 psec
  • Package Type
    Surface Mount
  • Output Voltage/Amplitude
    2.5 to 4 Vpp
  • Supply Voltage
    8 V
  • Gate Voltage
    VGG: -2 to 0 V
  • Bandwidth
    17.5 to 18.5 GHz
  • Input Power
    10 dBm,1.35 W(CW Power)
  • Input Return Loss
    10 to 20 dB
  • Supply Current
    50 to 75 mA
  • Jitter
    0.3 ps(Added RMS Jitter)
  • Control Voltage
    (Vdd -8) to Vdd (V
  • Output Power
    11 to 16.5 dBm
  • Group Delay
    ±15 ps
  • Saturated Power
    11 to 18 dBm
  • Output Return Loss
    10 to 15 dB
  • P1dB
    4 to 11 dBm
  • Drain Voltage
    Vdd: 9 V
  • Power Dissipation
    0.25 W
  • RoHs
    Yes
  • Thermal resistance
    66.31 Degree C/W

Technical Documents
Click to view more product details on manufacturer's website
