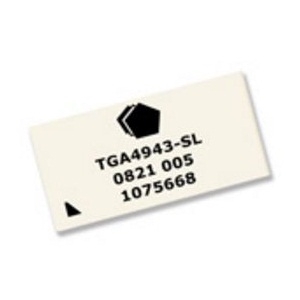

TGA4943-SL

Optical Modulator Driver by Qorvo
13 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Qorvo.

The TGA4943-SL from Qorvo is a Optical Modulator Driver with Data Rate 40 to 100 Gb/s, Gain 17 to 32 dB, Rise/Fall Time 12 psec, Output Voltage/Amplitude 3 to 9 Vpp. More details for TGA4943-SL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TGA4943-SL
  • Manufacturer
    Qorvo
  • Description
    40 & 100 Gb/s 8Vpp Optical Modulator Driver

Temperature

  • Channel Temperature
    200 Degree C
  • Operating Temperature
    -65 to 150 Degree C
  • Storage Temperature
    -65 to 150 Degree C

Physical Properties

  • Package Size
    14.4 x 7 x 2 mm

Applications

  • Applications
    40 GB/s Optical Market: DQPSK (2x), 40 GB/s Optical Market: DPSK (1x), 100 GB/s Optical Market: DP-QPSK (4x)

General Parameters

  • Data Rate
    40 to 100 Gb/s
  • Gain
    17 to 32 dB
  • Rise/Fall Time
    12 psec
  • Package Type
    Surface Mount
  • Output Voltage/Amplitude
    3 to 9 Vpp
  • Gate Voltage
    -5 to 0 V
  • Bandwidth
    27 GHz
  • Collecter Current
    -15 to 21 mA
  • Drain Current
    80 to 270 mA
  • Frequency
    DC to 30 MHz
  • Gate Current
    -15 to 21 mA
  • Input Power
    24 dBm(CW Power)
  • Input Return Loss
    3 to 15 dB
  • Jitter
    0.5 ps(Added RMS Jitter)
  • Control Voltage
    (Vd-7) to +5.5 V
  • Output Return Loss
    3 to 15 dB
  • Drain Voltage
    9 V
  • Power Dissipation
    3.05 W
  • RoHs
    Yes
  • Thermal resistance
    39.4 Degree C/W
