  5. PCD-UHR-II-1000-3.8-C

PCD-UHR-II-1000-3.8-C

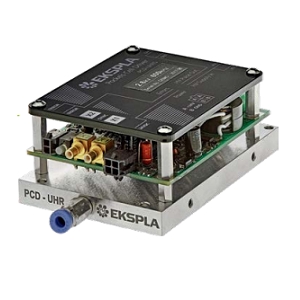

Pockels Cell Driver by EKSPLA
39 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EKSPLA.

The PCD-UHR-II-1000-3.8-C from EKSPLA is a Pockels Cell Driver with Output Voltage Amplitude 3.8 to 3.8 kV, Supply Voltage(DC) 24 VDC ±1 V, Fall Time <9.5 ns, Trigger Voltage 3.5 to 5 V, Repetition Rate 1000 kHz. More details for PCD-UHR-II-1000-3.8-C can be seen below.

Product Specifications

Product Details

  • Part Number
    PCD-UHR-II-1000-3.8-C
  • Manufacturer
    EKSPLA
  • Description
    3.8 to 3.8 kV 1000 kHz 100 to 5000 ns Bipolar Pockel cell driver

Electrical Specifications

  • Output Voltage Amplitude
    3.8 to 3.8 kV
  • Supply Voltage(DC)
    24 VDC ±1 V
  • Fall Time
    <9.5 ns
  • Trigger Voltage
    3.5 to 5 V
  • HV Power Consumption
    210 W
  • Input Impedance
    50 Ohms

General Parameters

  • Crystal Material
    Beta Barium Borate (BBO), Rubidium Titanyle Phosphate (RTP), Potassium Dihydrogen Phosphate (KD*P), Cadmium Telluride (CdTe)
  • Repetition Rate
    1000 kHz
  • Pulse Width
    100 to 5000 ns
  • Rise Time
    <9.5 ns
  • Output Type
    Bi-Polar
  • Digital Signal
    rise and fall edges
  • Output pulse delay from trigger pulse
    >20 ns (Triggering pulse)
  • Pulse Delay
    25 ns
  • Pulse Jitter
    <100 ps
  • Pulse Output
    nanosecond
  • Pulse Shape
    Square
  • Rise/Fall Time
    <9.5 ns
  • Note
    Maximal length of leads to Pockels cell: 10 cm
