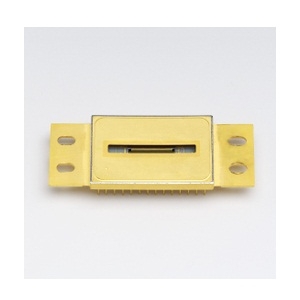

G11508-256SA

SWIR Sensor by Hamamatsu Photonics
47 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Hamamatsu Photonics.

The G11508-256SA from Hamamatsu Photonics is a SWIR Sensor with Dark Current -10 to 10 pA, Line Rate 17200 lines/s, Clock Frequency 0.1 to 5 MHz, Clock Pulse Width 60 to 5000 ns, Data Rate 5 MHz. More details for G11508-256SA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    G11508-256SA
  • Manufacturer
    Hamamatsu Photonics
  • Description
    Near infrared sensors (0.9 to 1.67 µm)

General Parameters

  • SWIR Type
    InGaAs SWIR Sensor
  • Sensor Technology
    Indium Gallium Arsenide (InGaAs)
  • Total Number of Pixels
    256 pixels
  • Sensor Type
    Line Scan Sensor
  • Number of Effective Pixels
    256 pixels
  • Dark Current
    -10 to 10 pA
  • Pixel Size(H x V)
    50 x 500 µm
  • Pixel Pitch
    50 µm
  • Cooling
    Single Stage TE Cooled
  • Image Size
    12.8 x 0.5 mm
  • Line Rate
    17200 lines/s
  • Package Type
    Hermatically Sealed, Chip
  • Package
    28-pin metal
  • Clock Pulse rise/fall times
    20 to 30 ns
  • Clock Pulse Voltage
    -0.3 to 6 V
  • Conversion Efficiency
    16 to 160 nV/e
  • Current Consumption
    45 to 80 mA
  • Dark Output (nonuniformity)
    -1 to 1 V/s (nonuniformity)
  • Full Well Capacity
    17.5 to 175 Me-
  • Output Impedance
    5 kOhms
  • Peak Sensitivity Wavelength
    1.55 µm
  • Photoresponse Nonuniformity
    ±3 to ±5%
  • Readout Noise
    300 to 500 µV rms
  • Reset pulse rise/fall times
    20 to 30 ns
  • Reset Pulse Width
    6 to 284 clocks
  • Saturation Output Voltage
    2.7 to 2.8 V
  • Thermistor B Constant
    3660 K
  • Thermistor Power Dissipation
    400 mW
  • Thermistor Resistance
    9 to 11 kOhms
  • Video line reset voltage
    3.9 to 4.1 V
  • Window Material
    Sapphire with AR coating
  • Clock Frequency
    0.1 to 5 MHz
  • Clock Pulse Width
    60 to 5000 ns
  • Data Rate
    5 MHz
  • Responsivity/Photosensitivity
    0.9 to 1.0 A/W
  • Spectral Response Range
    0.9 to 1.67 µm
  • Supply Voltage
    4.7 to 5.3 V
  • Supply Current
    45 to 80 mA
  • Note
    Hermatically Sealed

Applications

  • Application
    Near infrared multichannel spectrophotometry, Radiation thermometers, Non-destructive inspection equipment

Environmental Conditions

  • Operating Temperature
    -20 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
