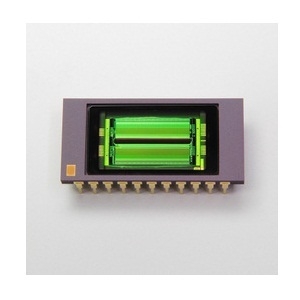

G11620-512DA

SWIR Sensor by Hamamatsu Photonics
47 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Hamamatsu Photonics.

The G11620-512DA from Hamamatsu Photonics is a SWIR Sensor with Dark Current ±0.5 to ±5 pA, Line Rate 9150 lines/s, Clock Frequency 0.1 to 5 MHz, Clock Pulse Width 60 to 5000 ns, Data Rate 0.1 to 5 MHz(Video). More details for G11620-512DA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    G11620-512DA
  • Manufacturer
    Hamamatsu Photonics
  • Description
    Near infrared image sensor (0.95 to 1.7 µm), Single video line: 512 pixels

General Parameters

  • SWIR Type
    InGaAs SWIR Sensor
  • Sensor Technology
    Indium Gallium Arsenide (InGaAs)
  • Total Number of Pixels
    512 pixels
  • Sensor Type
    Line Scan Sensor
  • Number of Effective Pixels
    512 pixels
  • Dark Current
    ±0.5 to ±5 pA
  • Pixel Size(H x V)
    25 x 500 µm
  • Pixel Pitch
    25 µm
  • Cooling
    Non-Cooled
  • Image Size
    12.8 x 0.5 mm
  • Line Rate
    9150 lines/s
  • Package Type
    Ceramic, DIP
  • Package
    22-pin ceramic
  • Clock Pulse rise/fall times
    20 to 30 ns
  • Clock Pulse Voltage
    0.4 to 5.3 V
  • Conversion Efficiency
    16 to 160 nV/e
  • Current Consumption
    80 to 100 mA
  • Dark Output (nonuniformity)
    ±0.05 to ±0.5 V/s
  • Defective Pixels
    0.01
  • Input stage amplifier reference voltage
    3.9 to 4.1 V
  • Operating Frequency
    0.1 to 5 MHz
  • Output Impedance
    5 kOhms
  • Peak Sensitivity Wavelength
    1.55 µm
  • Photoresponse Nonuniformity
    ±5 to ±10%
  • Readout Noise
    200 to 500 µV rms
  • Reset pulse rise/fall times
    20 to 30 ns
  • Reset Pulse Width
    6 to 28 clocks
  • Saturation Charge
    16.8 to 175 Me-
  • Saturation Output Voltage
    2.7 to 2.8 V
  • Thermistor B Constant
    3950 K
  • Thermistor Power Dissipation
    400 mW
  • Thermistor Resistance
    9 to 11 kOhms
  • Video line reset voltage
    3.9 to 4.1 V
  • Window Material
    Borosilicate glass with anti-reflective coating
  • Clock Frequency
    0.1 to 5 MHz
  • Clock Pulse Width
    60 to 5000 ns
  • Data Rate
    0.1 to 5 MHz(Video)
  • Responsivity/Photosensitivity
    0.7 to 0.82 A/W
  • Spectral Response Range
    0.95 to 1.7 µm
  • Supply Voltage
    4.7 to 5.3 V
  • Supply Current
    80 to 100 mA

Applications

  • Application
    Near infrared multichannel spectrophotometry, Radiation thermometry, Non-destructive inspection

Environmental Conditions

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -20 to 70 Degree C
