ALQ10-IR4-02

Fiber Optic Transceiver by 10Gtek Transceivers
344 more products from this company
Request Quote

Note: Your Quotation Request will be directed to 10Gtek Transceivers.

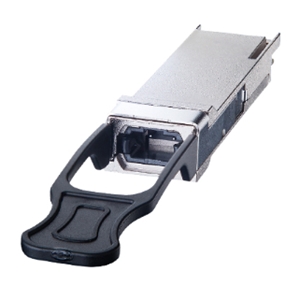

The ALQ10-IR4-02 from 10Gtek Transceivers is a Fiber Optic Transceiver with Data Rate 44.8 Gb/s, Wavelength 1270 to 1330 nm, Distance/Reach 2 km, Output Power -7 to 2.4 dBm, Receiver Sensitivity -11.7 dBm. More details for ALQ10-IR4-02 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ALQ10-IR4-02
  • Manufacturer
    10Gtek Transceivers
  • Description
    1270 to 1330 nm QSFP+ Transceiver with -7 to 2.4 dBm Power

Applications

  • Applications
    High-speed interconnects within and between switches, routers and transport equipment, Server-Server Clusters, Super-computing interconnections Proprietary backplanes, Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane,

Connections & Interface

  • Connector
    MTP, MPO

General Parameters

  • Data Rate
    44.8 Gb/s
  • Wavelength
    1270 to 1330 nm
  • Distance/Reach
    2 km
  • Output Power
    -7 to 2.4 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    QSFP+
  • Receiver Sensitivity
    -11.7 dBm
  • Tx Power
    -7 to 2.4 dBm

Temperature

  • Operating Temperature
    0 to 70 Degree C
