10G-SFP-LR

Fiber Optic Transceiver by 3Coptics
97 more products from this company
Request Quote

Note: Your Quotation Request will be directed to 3Coptics.

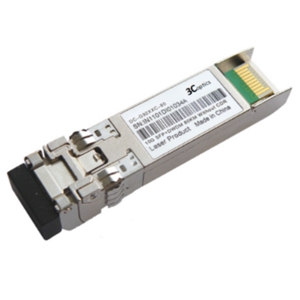

The 10G-SFP-LR from 3Coptics is a Fiber Optic Transceiver with Data Rate 10 Gb/s, Wavelength 1310 nm (DFB), Distance/Reach 10 km (Reach), Output Power -8.2 to 0.5 dBm, Receiver Sensitivity -14.4 dBm. More details for 10G-SFP-LR can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    10G-SFP-LR
  • Manufacturer
    3Coptics
  • Description
    1310 nm DFB Transceiver with -8.2 to 0.5 dBm Power

Connections & Interface

  • Connector
    LC

General Parameters

  • Data Rate
    10 Gb/s
  • Wavelength
    1310 nm (DFB)
  • Distance/Reach
    10 km (Reach)
  • Output Power
    -8.2 to 0.5 dBm
  • Form Factor
    SFP
  • Receiver Sensitivity
    -14.4 dBm
  • Power Consumption
    <1 W
  • Tx Power
    -8.2 to 0.5 dBm

Temperature

  • Operating Temperature
    0 to 70 Degree C
Click to view more product details on manufacturer's website
