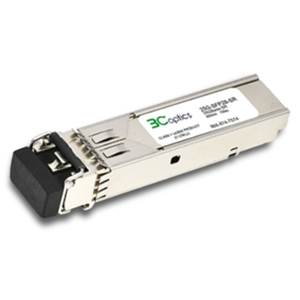

25G-SFP28-ER

Fiber Optic Transceiver by 3Coptics
97 more products from this company
Request Quote

Note: Your Quotation Request will be directed to 3Coptics.

The 25G-SFP28-ER from 3Coptics is a Fiber Optic Transceiver with Data Rate 25 Gb/s, Wavelength 1270 nm, 1310 nm (EML), Distance/Reach 30 km(Non-FEC), 40 km, Output Power -3 to 6 dBm, Receiver Sensitivity -18 dBm, -21 dBm. More details for 25G-SFP28-ER can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    25G-SFP28-ER
  • Manufacturer
    3Coptics
  • Description
    1270 nm, 1310 nm EML Transceiver with -3 to 6 dBm Power

Applications

  • Applications
    Data Centers, 5G Network, 25G Ethernet and Fiber Channel

Connections & Interface

  • Connector
    LC
  • Interface
    Ethernet

General Parameters

  • Data Rate
    25 Gb/s
  • Wavelength
    1270 nm, 1310 nm (EML)
  • Distance/Reach
    30 km(Non-FEC), 40 km
  • Output Power
    -3 to 6 dBm
  • Form Factor
    SFP28
  • Receiver Sensitivity
    -18 dBm, -21 dBm
  • Power Consumption
    <1.5 W
  • Tx Power
    -3 to 6 dBm

Temperature

  • Operating Temperature
    -20 to 85 Degree C
