A58LFCxxEDGA0753

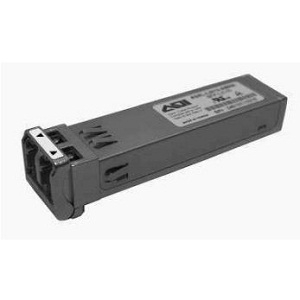

Fiber Optic Transceiver by Applied Optoelectronics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Applied Optoelectronics.

The A58LFCxxEDGA0753 from Applied Optoelectronics is a Fiber Optic Transceiver with Data Rate 2.67 Gb/s, Wavelength 1270 to 1610 nm, Distance/Reach 20 km, Output Power -5 to 0.5 dBm, Receiver Sensitivity -19 dBm. More details for A58LFCxxEDGA0753 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    A58LFCxxEDGA0753
  • Manufacturer
    Applied Optoelectronics
  • Description
    SFP 2.67G 20km CWDM 1xx1nm PIN I-temp

Applications

  • Applications
    SONET, Ethernet, CPRI

Connections & Interface

  • Connector
    LC
  • Interface
    2-Wire

General Parameters

  • Data Rate
    2.67 Gb/s
  • Wavelength
    1270 to 1610 nm
  • Distance/Reach
    20 km
  • Output Power
    -5 to 0.5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -19 dBm
  • Tx Power
    -5 to 0.5 dBm
  • Tx/Rx Component
    PIN(Rx)
  • Supply Current
    420 mA
  • Supply Voltage
    3.3 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Fiber Core Diameter
    9/125 µm
