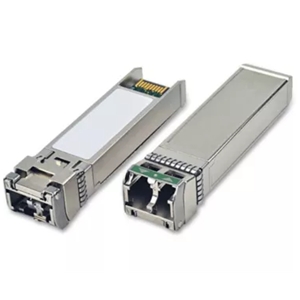

FTLX6872MNC

Fiber Optic Transceiver by Coherent Corp.
18 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The FTLX6872MNC from Coherent Corp. is a Fiber Optic Transceiver with Data Rate 8.5 to 11.3 Gb/s, Wavelength 1528.77 to 1563.86 nm (Tx), 1260 to 1600 nm (Rx), Distance/Reach up to 80 km, Output Power -1 to 3 dBm. More details for FTLX6872MNC can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FTLX6872MNC
  • Manufacturer
    Coherent Corp.
  • Description
    10Gb/s DWDM 80km Multi-Rate Tunable SFP+ Transceiver E-temp versions

Applications

  • Applications
    DWDM 80km point to point links: 8G Fibre Channel, 10Gb/s SONET/SDH, 10G Ethernet, 10G Fibre Channel, ITU-T G.698.1 DS100S1-2Dz(C), ITU-T G.709

Connections & Interface

  • Connector
    Duplex LC
  • Interface
    Gigabit Ethernet

General Parameters

  • Data Rate
    8.5 to 11.3 Gb/s
  • Wavelength
    1528.77 to 1563.86 nm (Tx), 1260 to 1600 nm (Rx)
  • Distance/Reach
    up to 80 km
  • Output Power
    -1 to 3 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP+
  • Power Dissipation
    2.5 W
  • Rx Power
    -7 dBm
  • Tx Power
    -1 to 3 dBm
  • Supply Current
    800 mA
  • Supply Voltage
    3.14 to 3.46 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -5 to 85 Degree C (Case)
  • Storage Temperature
    -40 to 85 Degree C
