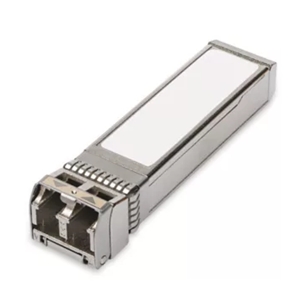

FTLX8574D3BCV

Fiber Optic Transceiver by Coherent Corp.
18 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The FTLX8574D3BCV from Coherent Corp. is a Fiber Optic Transceiver with Data Rate 1.25 to 10.3 Gb/s, Wavelength 840 to 860 nm, Distance/Reach 26 to 550 m, Receiver Sensitivity -17 to -7.5 dBm. More details for FTLX8574D3BCV can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FTLX8574D3BCV
  • Manufacturer
    Coherent Corp.
  • Description
    1G/10G 850nm Multimode Datacom SFP+ Transceiver

Applications

  • Applications
    1000BASE-SX 1G Ethernet, 10GBASE-SR/SW 10G Ethernet
  • Standard Supported
    IEEE 802.3-2012

Connections & Interface

  • Connector
    Duplex LC
  • Interface
    CPRI, Gigabit Ethernet

General Parameters

  • Data Rate
    1.25 to 10.3 Gb/s
  • Wavelength
    840 to 860 nm
  • Distance/Reach
    26 to 550 m
  • Fiber Modes
    Multi Mode
  • Form Factor
    SFP+
  • Receiver Sensitivity
    -17 to -7.5 dBm
  • Power Dissipation
    <1 W
  • Rx Power
    0.5 dBm
  • Tx Power
    -9.5 to -1 dBm
  • Tx/Rx Component
    VCSEL(Tx)/PIN(Rx)
  • Supply Current
    250 mA
  • Supply Voltage
    3.14 to 3.46 V
  • Network Technology
    10GBASE-SR/SW2, 1000BASE-SX3
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -5 to 70 Degree C (Case)
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Fiber Core Diameter
    50 µm, 62.5 µm
