CQM-915A04

Fiber Optic Transceiver by Huber+Suhner
99 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Huber+Suhner.

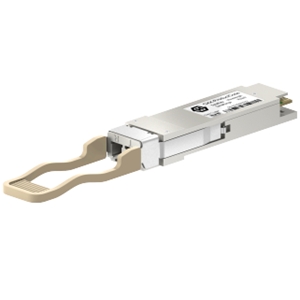

The CQM-915A04 from Huber+Suhner is a Fiber Optic Transceiver with Data Rate 41.25 to 103.125 Gb/s, Wavelength 850 to 900 nm, Distance/Reach up to 100 m. More details for CQM-915A04 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CQM-915A04
  • Manufacturer
    Huber+Suhner
  • Description
    100G QSFP28 PAM4 SR1.2 Transceiver

Connections & Interface

  • Connector
    Duplex LC/PC
  • Interface
    Ethernet

General Parameters

  • Data Rate
    41.25 to 103.125 Gb/s
  • Wavelength
    850 to 900 nm
  • Distance/Reach
    up to 100 m
  • Fiber Modes
    Multi Mode
  • Form Factor
    QSFP28
  • Power Consumption
    <3.5 W
  • Tx/Rx Component
    VCSEL(Tx)/ PIN(Rx)
  • Supply Voltage
    3.13 to 3.47 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
