CQS-943A22

Fiber Optic Transceiver by Huber+Suhner
99 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Huber+Suhner.

The CQS-943A22 from Huber+Suhner is a Fiber Optic Transceiver with Data Rate 103.125 Gb/s, Distance/Reach up to 80 km, Output Power -8 to 3 dBm, Receiver Sensitivity <-30 to -24 dBm. More details for CQS-943A22 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CQS-943A22
  • Manufacturer
    Huber+Suhner
  • Description

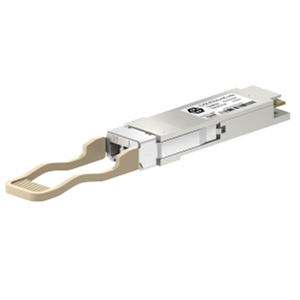

    100 Gb/s QSFP28 Coherent Tunable DWDM ZR Transceiver

Connections & Interface

  • Connector
    Duplex LC/PC
  • Interface
    Ethernet

General Parameters

  • Data Rate
    103.125 Gb/s
  • Distance/Reach
    up to 80 km
  • Output Power
    -8 to 3 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    QSFP28
  • Receiver Sensitivity
    <-30 to -24 dBm
  • Power Consumption
    <5 W
  • Rx Power
    >3 dBm
  • Tx Power
    -8 to -4 dBm
  • Supply Voltage
    3.135 to 3.465 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
