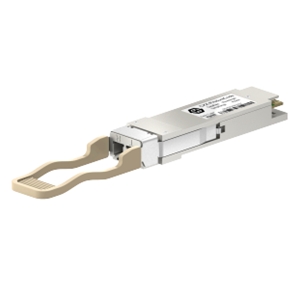

CQS-948A30

Fiber Optic Transceiver by Huber+Suhner
99 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Huber+Suhner.

The CQS-948A30 from Huber+Suhner is a Fiber Optic Transceiver with Data Rate 103.125 to 111.809 Gb/s, Distance/Reach up to 120 km, Output Power >3 dBm, Receiver Sensitivity <-30 to -24 dBm. More details for CQS-948A30 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CQS-948A30
  • Manufacturer
    Huber+Suhner
  • Description
    100 Gb/s QSFP28 Coherent Tunable DWDM ZR Bright Transceiver

Connections & Interface

  • Connector
    Duplex LC/PC
  • Interface
    Ethernet

General Parameters

  • Data Rate
    103.125 to 111.809 Gb/s
  • Distance/Reach
    up to 120 km
  • Output Power
    >3 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    QSFP28
  • Receiver Sensitivity
    <-30 to -24 dBm
  • Power Consumption
    <5.5 W
  • Rx Power
    >3 dBm
  • Supply Voltage
    3.135 to 3.465 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
