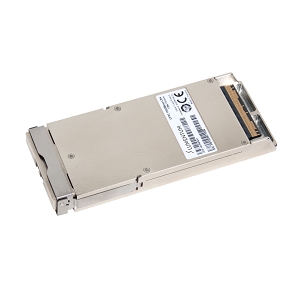

JC2-10LM4AA1

Fiber Optic Transceiver by Lumentum Operations LLC
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumentum Operations LLC.

The JC2-10LM4AA1 from Lumentum Operations LLC is a Fiber Optic Transceiver with Data Rate 103.125 Gb/s to 111.81 Gb/s, Wavelength 1296 to 1309 nm, Distance/Reach 10 km, Output Power -10.6 to 4.5 dBm. More details for JC2-10LM4AA1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    JC2-10LM4AA1
  • Manufacturer
    Lumentum Operations LLC
  • Description
    CFP2 LR4 Optical Transceiver with 100 Gigabit Ethernet for up to 10 km Reach

Applications

  • Applications
    LAN, WAN, Ethernet switches and router applications, ITU-T OTU4 OTL, 4.4 applications
  • Standard Supported
    IEEE 802.3

Connections & Interface

  • Connector
    Duplex LC

General Parameters

  • Data Rate
    103.125 Gb/s to 111.81 Gb/s
  • Wavelength
    1296 to 1309 nm
  • Distance/Reach
    10 km
  • Output Power
    -10.6 to 4.5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    CFP2
  • Power Dissipation
    8 to 9 W
  • Rx Power
    -10.6 to 4.5 dBm
  • Tx Power
    -4.3 to 4.5 dBm
  • Tx/Rx Component
    EML(Tx)/PIN(Rx)
  • Supply Current
    3.75 A
  • Supply Voltage
    3.135 to 3.465 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -5 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
