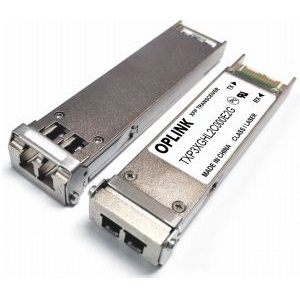

TXP3XGHL2x000E2G

Fiber Optic Transceiver by Oplink Communications
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Oplink Communications.

The TXP3XGHL2x000E2G from Oplink Communications is a Fiber Optic Transceiver with Data Rate 9.25 to 11.09 Gb/s, Wavelength 1530 to 1565 nm, Distance/Reach 80 km, Receiver Sensitivity -27 to -24 dBm. More details for TXP3XGHL2x000E2G can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TXP3XGHL2x000E2G
  • Manufacturer
    Oplink Communications
  • Description
    XFP 10G LR2, TDM 80km, 1550nm, TXP3XGHL2x

Connections & Interface

  • Interface
    2-wire

General Parameters

  • Data Rate
    9.25 to 11.09 Gb/s
  • Wavelength
    1530 to 1565 nm
  • Distance/Reach
    80 km
  • Fiber Modes
    Single Mode
  • Form Factor
    XFP
  • Receiver Sensitivity
    -27 to -24 dBm
  • Power Dissipation
    3.5 W
  • Rx Power
    Rx: -1 dBm
  • Tx Power
    -1 to 4 dBm
  • Supply Current
    500 to 750 mA
  • Supply Voltage
    3.13 to 5.25 V
  • RoHs
    Yes
  • Note
    Spectral width: 1 nm, Extinctions ratio: 8.2 dB, Rise/Fall Time: 24 ps, Input Voltage: 0 V, Differential Input Voltage: (Rx): 120 to 820 mV, Differential Output Voltage: (Rx): 340 to 850 mV

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
