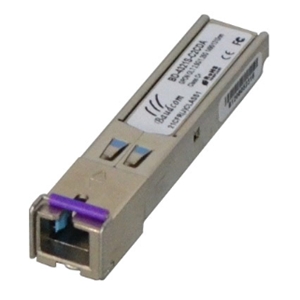

BD-4311S-E2CDA

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BD-4311S-E2CDA from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 1.25 Gb/s, Wavelength 1260 to 1360 nm (Rx), 1480 to 1500 nm (Tx), Output Power 3 to 7 dBm, Receiver Sensitivity -28 dBm. More details for BD-4311S-E2CDA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BD-4311S-E2CDA
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1260 to 1500 nm Optical Transceiver with 3 to 7 dBm Power

Applications

  • Applications
    Gigabit Ethernet Passive Optical Network (GEPON) OLT

Connections & Interface

  • Connector
    SC
  • Interface
    DDM, LVPECL

General Parameters

  • Data Rate
    1.25 Gb/s
  • Wavelength
    1260 to 1360 nm (Rx), 1480 to 1500 nm (Tx)
  • Output Power
    3 to 7 dBm
  • Form Factor
    SFP
  • Receiver Sensitivity
    -28 dBm
  • Supply Voltage
    3.3 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
