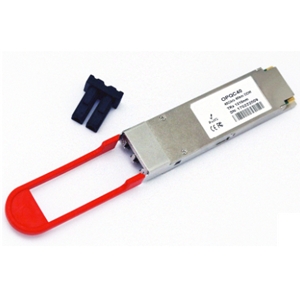

BD-OPQC40

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BD-OPQC40 from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 10.3125 to 11.2 Gb/s (Per channel), Wavelength 1264.5 to 1337.5 nm, Distance/Reach 40 km, Output Power -2.7 to 4.5 dBm, Receiver Sensitivity -19 dBm. More details for BD-OPQC40 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BD-OPQC40
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1264.5 to 1337.5 nm Optical Transceiver with -2.7 to 4.5 dBm Power

Applications

  • Applications
    Rack to rack, Data centers Switches and Routers, Metro networks, Switches and Routers, 40G BASE-ER4 Ethernet Links

Connections & Interface

  • Connector
    LC, 38-pin
  • Interface
    LVCMOS/LVTTL, 2 wire serial

General Parameters

  • Data Rate
    10.3125 to 11.2 Gb/s (Per channel)
  • Wavelength
    1264.5 to 1337.5 nm
  • Distance/Reach
    40 km
  • Output Power
    -2.7 to 4.5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    QSFP+
  • Receiver Sensitivity
    -19 dBm
  • Power Consumption
    2.5 to 3.5 W
  • Power Dissipation
    2.5 to 3.5 W
  • Supply Current
    0.75 to 1.1 A
  • Supply Voltage
    3.13 to 3.47 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
