BD-QSFP-CD10

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

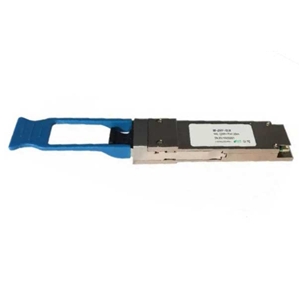

The BD-QSFP-CD10 from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 40 Gb/s, Wavelength 1270 to 1350 nm, Distance/Reach 10 km, Output Power -5.2 to 1 dBm, Receiver Sensitivity -12.5 dBm (Stressed). More details for BD-QSFP-CD10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BD-QSFP-CD10
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1270 to 1350 nm Optical Transceiver with -5.2 to 1 dBm Power

Applications

  • Applications
    InfiniBand QDR, DDR and SDR, 40G Ethernet, Proprietary High Speed Interconnections, Data center

Connections & Interface

  • Connector
    MPO
  • Interface
    2-Wire Serial

General Parameters

  • Data Rate
    40 Gb/s
  • Wavelength
    1270 to 1350 nm
  • Distance/Reach
    10 km
  • Output Power
    -5.2 to 1 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    QSFP
  • Receiver Sensitivity
    -12.5 dBm (Stressed)
  • Power Consumption
    <2.5 W
  • Supply Voltage
    -0.3 to 3.6 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
