BD-XX48-08CD

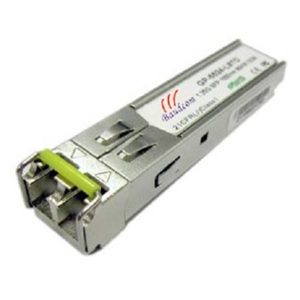

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BD-XX48-08CD from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 2.67 Gb/s, Wavelength 1470 to 1610 nm, Distance/Reach 120 km, Output Power 0 to 5 dBm, Receiver Sensitivity -28 dBm. More details for BD-XX48-08CD can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BD-XX48-08CD
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1470 to 1610 nm Optical Transceiver with 0 to 5 dBm Power

Applications

  • Applications
    SDH STM-16 and SONET OC-48 system, 2X Fiber Channel, Switch to Switch interface, Switched backplane applications, Router/Server interface, Other optical transmission systems

Connections & Interface

  • Connector
    Duplex LC
  • Interface
    DDM, 2 wire serial, SDH STM-16 and SONET OC-48

General Parameters

  • Data Rate
    2.67 Gb/s
  • Wavelength
    1470 to 1610 nm
  • Distance/Reach
    120 km
  • Output Power
    0 to 5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -28 dBm
  • Rx Power
    -30 to -9 dBm
  • Supply Current
    300 mA
  • Supply Voltage
    3.13 to 3.47 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
Click to view more product details on manufacturer's website
