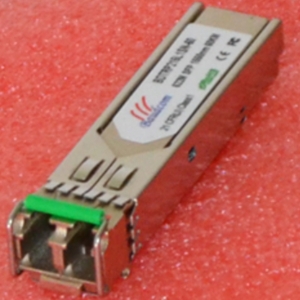

BDP-3115–L1x(D)

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BDP-3115–L1x(D) from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 1.485 Gb/s, Wavelength 1260 to 1360 nm (Tx), 1260 to 1580 nm (Rx), Distance/Reach 10 km, Output Power -9 to -3 dBm, Receiver Sensitivity -18 dBm. More details for BDP-3115–L1x(D) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BDP-3115–L1x(D)
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1260 to 1580 nm Optical Transceiver with -9 to -3 dBm Power

Applications

  • Applications
    SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces, HDTV/SDTV Service Interfaces

Connections & Interface

  • Connector
    Duplex LC
  • Interface
    HDTV/SDTV

General Parameters

  • Data Rate
    1.485 Gb/s
  • Wavelength
    1260 to 1360 nm (Tx), 1260 to 1580 nm (Rx)
  • Distance/Reach
    10 km
  • Output Power
    -9 to -3 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -18 dBm
  • Rx Power
    -23 to -3 dBm
  • Tx Power
    -9 to -3 dBm
  • Supply Current
    300 mA
  • Supply Voltage
    3.13 to 3.47 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
Click to view more product details on manufacturer's website
