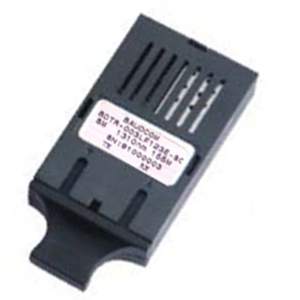

BDTR-024L

Fiber Optic Transceiver by Shanghai Baudcom Communication Device

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BDTR-024L from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 1250 Mb/s, Wavelength 1270 to 1360 nm (Tx), 1100 to 1600 nm (Rx), Distance/Reach Up to 40 km, Output Power -5 to 2 dBm, Receiver Sensitivity -22 dBm. More details for BDTR-024L can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BDTR-024L
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1270 to 1600 nm Optical Transceiver with -5 to 2 dBm Power

Applications

  • Applications
    Telecommunication

Connections & Interface

  • Connector
    Duplex SC, FC, ST
  • Interface
    SONET/OC-24, TTL, LVTTL, PECL, LVPECL

General Parameters

  • Data Rate
    1250 Mb/s
  • Wavelength
    1270 to 1360 nm (Tx), 1100 to 1600 nm (Rx)
  • Distance/Reach
    Up to 40 km
  • Output Power
    -5 to 2 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    1x9
  • Receiver Sensitivity
    -22 dBm
  • Rx Power
    -3 dBm (Input)
  • Tx Power
    -5 to 2 dBm
  • Supply Current
    100 to 140 mA
  • Supply Voltage
    3.3 V, 5 V

Temperature

  • Operating Temperature
    0 to 70 Degree C
