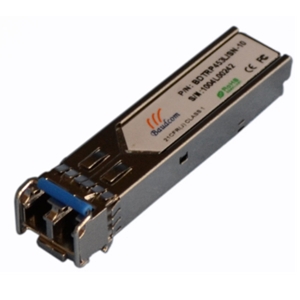

BDTRP113L1SD-20

Fiber Optic Transceiver by Shanghai Baudcom Communication Device

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BDTRP113L1SD-20 from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 155 Mb/s, Wavelength 1270 to 1360 nm (Tx), 1265 to 1600 nm (Rx), Distance/Reach 20 km, Output Power -12 to -5 dBm, Receiver Sensitivity -37 to -34 dBm. More details for BDTRP113L1SD-20 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BDTRP113L1SD-20
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1260 to 1580 nm Optical Transceiver with -12 to -5 dBm Power

Applications

  • Applications
    Fast Ethernet, SDH/STM-1,SONET/OC-3, Switch to Switch interface, Switched backplane applications, Router/Server interface, Other optical transmission systems

Connections & Interface

  • Connector
    Duplex LC
  • Interface
    DDM

General Parameters

  • Data Rate
    155 Mb/s
  • Wavelength
    1270 to 1360 nm (Tx), 1265 to 1600 nm (Rx)
  • Distance/Reach
    20 km
  • Output Power
    -12 to -5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -37 to -34 dBm
  • Power Dissipation
    <700 mW
  • Supply Current
    200 to 300 mA
  • Supply Voltage
    3 to 3.6 V

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C

Physical Properties

  • Fiber Core Diameter
    9/125 µm
