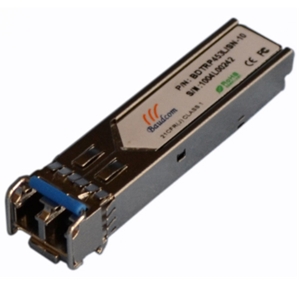

BDTRP413L1SD-20

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BDTRP413L1SD-20 from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 1.25 Gb/s, Wavelength 1270 to 1355 nm (Tx), 1270 to 1600 nm (Rx), Distance/Reach 20 km, Output Power -9.5 to -3 dBm, Receiver Sensitivity -22 dBm. More details for BDTRP413L1SD-20 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BDTRP413L1SD-20
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1260 to 1580 nm Optical Transceiver with -9.5 to -3 dBm Power

Applications

  • Applications
    Gigabit Ethernet, Fiber Channel, Switch to Switch interface, Switched backplane applications, Router/Server interface, Other optical transmission systems

Connections & Interface

  • Connector
    Duplex LC
  • Interface
    Gigabit Ethernet, Digital Diagnostic Monitoring(DDM)

General Parameters

  • Data Rate
    1.25 Gb/s
  • Wavelength
    1270 to 1355 nm (Tx), 1270 to 1600 nm (Rx)
  • Distance/Reach
    20 km
  • Output Power
    -9.5 to -3 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -22 dBm
  • Power Dissipation
    <700 mW
  • Supply Voltage
    3.3 V

Temperature

  • Operating Temperature
    0 to 70 Degree C

Physical Properties

  • Fiber Core Diameter
    9/125 µm
