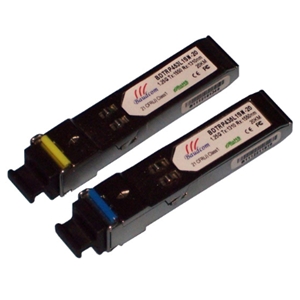

BDTRP439S1SN/D-20

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BDTRP439S1SN/D-20 from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 1.25 Gb/s, Wavelength 1260 to 1360 nm (Tx), 1480 to 1580 nm (Rx), Distance/Reach 20 km, Output Power -9 to -3 dBm, Receiver Sensitivity -21 dBm. More details for BDTRP439S1SN/D-20 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BDTRP439S1SN/D-20
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1260 to 1580 nm Optical Transceiver with -9 to -3 dBm Power

Applications

  • Applications
    Switch to switch interface, High speed I/O for file servers, Bus extension applications

Connections & Interface

  • Connector
    Simplex SC
  • Interface
    DDM, LVPECL, Gigabit Ethernet

General Parameters

  • Data Rate
    1.25 Gb/s
  • Wavelength
    1260 to 1360 nm (Tx), 1480 to 1580 nm (Rx)
  • Distance/Reach
    20 km
  • Output Power
    -9 to -3 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -21 dBm
  • Rx Power
    -21 to 0 dBm
  • Supply Voltage
    3.3 V

Temperature

  • Operating Temperature
    0 to 70 Degreee C

Physical Properties

  • Fiber Core Diameter
    9/125 µm
