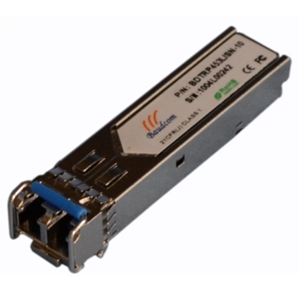

BDTRP453L1SN-10

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BDTRP453L1SN-10 from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 1.25 Gb/s, Wavelength 1270 to 1360 nm (Tx), 1265 to 1600 nm (Rx), Distance/Reach Up to 120 km, Output Power -9 to -3 dBm, Receiver Sensitivity -22 to -21 dBm. More details for BDTRP453L1SN-10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BDTRP453L1SN-10
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1270 to 1600 nm Optical Transceiver with -9 to -3 dBm Power

Applications

  • Applications
    Switch to switch interface, High speed I/O for file servers, Bus extension applications

Connections & Interface

  • Connector
    Duplex LC
  • Interface
    Gigabit Ethernet

General Parameters

  • Data Rate
    1.25 Gb/s
  • Wavelength
    1270 to 1360 nm (Tx), 1265 to 1600 nm (Rx)
  • Distance/Reach
    Up to 120 km
  • Output Power
    -9 to -3 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -22 to -21 dBm
  • Power Dissipation
    <700 mW
  • Supply Current
    200 to 300 mA
  • Supply Voltage
    3 to 3.6 V

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C

Physical Properties

  • Fiber Core Diameter
    9/125 µm
