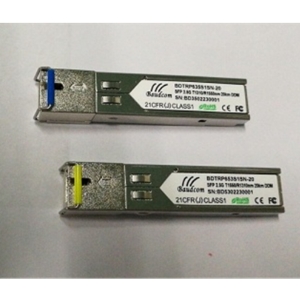

BDTRP695S2SD-40

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BDTRP695S2SD-40 from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 2.125 to 2.5 Gb/s, Wavelength 1490 to 1550 nm, Distance/Reach 40 km, Output Power -2 to 3 dBm, Receiver Sensitivity -20 dBm. More details for BDTRP695S2SD-40 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BDTRP695S2SD-40
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1490 to 1550 nm Optical Transceiver with -2 to 3 dBm Power

Applications

  • Applications
    SDH STM-16 and SONET OC-48 system, Fiber Channel, Switch to Switch interface, Switched backplane applications, Router/Server interface, Other Optical Links

Connections & Interface

  • Connector
    LC
  • Interface
    DDMI

General Parameters

  • Data Rate
    2.125 to 2.5 Gb/s
  • Wavelength
    1490 to 1550 nm
  • Distance/Reach
    40 km
  • Output Power
    -2 to 3 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -20 dBm
  • Power Consumption
    <0.8 W
  • Supply Current
    220 mA
  • Supply Voltage
    3.13 to 3.47 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -40 to 85 Degree C
