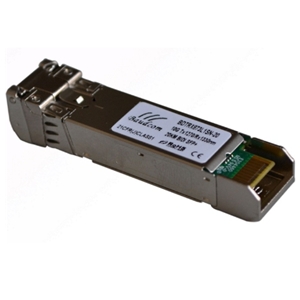

BDTRX873L1SN-10

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BDTRX873L1SN-10 from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 10 Gb/s, Wavelength 1260 to 1340 nm, Distance/Reach 10 km, Output Power -8.2 to 5 dBm. More details for BDTRX873L1SN-10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BDTRX873L1SN-10
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1260 to 1340 nm Optical Transceiver with -8.2 to 5 dBm Power

Applications

  • Applications
    10GBASE-LR at 10.3125Gbps, Other Optical Links

General Parameters

  • Data Rate
    10 Gb/s
  • Wavelength
    1260 to 1340 nm
  • Distance/Reach
    10 km
  • Output Power
    -8.2 to 5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Power Dissipation
    0.7 to 1.1 W
  • Supply Current
    200 to 300 mA
  • Supply Voltage
    3 to 3.6 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Fiber Core Diameter
    9/125 µm
