BXD-2348-040

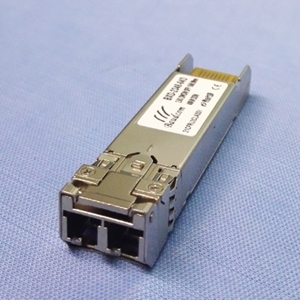

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BXD-2348-040 from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 155 to 2667 Mb/s, Wavelength 1528 to 1564 nm, Distance/Reach 80 km, Output Power 0 to 4 dBm, Receiver Sensitivity -30 to -28 dBm. More details for BXD-2348-040 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BXD-2348-040
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1528 to 1564 nm Optical Transceiver with 0 to 4 dBm Power

Applications

  • Applications
    SFP Transceivers for DWDM SONET/ SDH, Ethernet IEEE 802.3ae, Fiber Channel

Connections & Interface

  • Interface
    SONET/ SDH, Gigabit Ethernet

General Parameters

  • Data Rate
    155 to 2667 Mb/s
  • Wavelength
    1528 to 1564 nm
  • Distance/Reach
    80 km
  • Output Power
    0 to 4 dBm
  • Form Factor
    SFP
  • Receiver Sensitivity
    -30 to -28 dBm
  • Power Dissipation
    3.5 W
  • Rx Power
    -9 dBm (Input)
  • Tx Power
    0 to 4 dBm
  • Supply Current
    500 to 750 mA
  • Supply Voltage
    3.13 to 3.47 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -5 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
