OM-TVC155NF-OUxx OM-RVC000NF-OUxx

Fiber Optic Transceiver by Skyastar Technologies
8 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Skyastar Technologies.

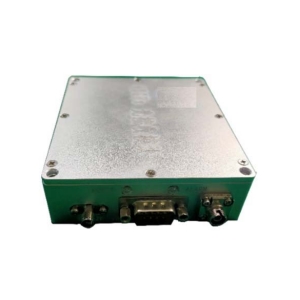

The OM-TVC155NF-OUxx OM-RVC000NF-OUxx from Skyastar Technologies is a Fiber Optic Transceiver with Wavelength 1100 to 1620 nm, Distance/Reach Up to 20 km, Output Power 9 dBm. More details for OM-TVC155NF-OUxx OM-RVC000NF-OUxx can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    OM-TVC155NF-OUxx OM-RVC000NF-OUxx
  • Manufacturer
    Skyastar Technologies
  • Description
    40GHz 1550nm Analog Optical Transceiver

Applications

  • Applications
    RFoF, Satellite communication, Antenna remoting, Optical Delay line, Microwave wireless communication, OFDM fiber transmission

Connections & Interface

  • Connector
    FC
  • Interface
    Analog-TTL

General Parameters

  • Wavelength
    1100 to 1620 nm
  • Distance/Reach
    Up to 20 km
  • Output Power
    9 dBm
  • Fiber Modes
    Single Mode
  • Supply Current
    20 to 730 mA
  • Supply Voltage
    14.5 to 18 V
  • RoHs
    Yes
  • Note
    Frequency: 0.1 to 40 GHz (Without LNA), 0.3 to 40 GHz (LNA)

Temperature

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C
