SP-FE-FX-CDFM

Fiber Optic Transceiver by Source Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Source Photonics.

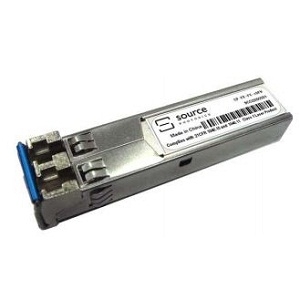

The SP-FE-FX-CDFM from Source Photonics is a Fiber Optic Transceiver with Data Rate 125 Mb/s, Wavelength 1310 nm, Distance/Reach 2 km, Receiver Sensitivity -31 dBm. More details for SP-FE-FX-CDFM can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SP-FE-FX-CDFM
  • Manufacturer
    Source Photonics

Applications

  • Applications
    100BASE-FX

Connections & Interface

  • Connector
    LC
  • Interface
    2-Wire

General Parameters

  • Data Rate
    125 Mb/s
  • Wavelength
    1310 nm
  • Distance/Reach
    2 km
  • Fiber Modes
    Multi Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -31 dBm
  • Power Consumption
    Less than 1 W
  • Power Dissipation
    1 W
  • Tx/Rx Component
    FP(Tx)/PIN(Rx)
  • Supply Current
    300 mA
  • Supply Voltage
    3.13 to 3.47 V
  • Network Technology
    100BASE-FX
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -5 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Fiber Core Diameter
    62.5/125 um

Technical Documents
