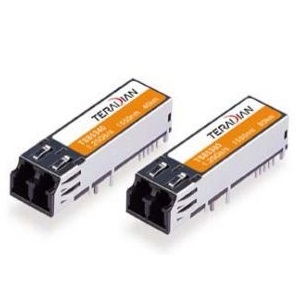

TS8x3xx series

Fiber Optic Transceiver by Teradian

Note: Your Quotation Request will be directed to Teradian.

The TS8x3xx series from Teradian is a Fiber Optic Transceiver with Data Rate 1.25 Gbps, Wavelength 1285 to 1580 nm, Distance/Reach 0.55 to 80 km, Output Power -9.5 to 2 dB, Receiver Sensitivity -26 to -20 dBm. More details for TS8x3xx series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TS8x3xx series
  • Manufacturer
    Teradian
  • Description
    Gigabit Ethernet 1.25Gbps SFF Transceiver

Applications

  • Applications
    Gibabit Ethernet / LAN switch, Metro Ethernet, High speed digital transmission, Storage area network

Connections & Interface

  • Connector
    LC

General Parameters

  • Data Rate
    1.25 Gbps
  • Wavelength
    1285 to 1580 nm
  • Distance/Reach
    0.55 to 80 km
  • Output Power
    -9.5 to 2 dB
  • Form Factor
    SFF
  • Receiver Sensitivity
    -26 to -20 dBm
  • Rx Power
    2
  • Tx Power
    -9.5
  • Supply Current
    50 to 170 mA
  • Supply Voltage
    3.1 to 3.5 V
  • Note
    Relative Humidity: 95%, Extinction Ratio: 9 dB, Spectral Width: 2 to 2.8 nm, Rise Time: 0.26 ns, Fall Time: 0.26 ns, Input Voltage: 0.8 to 2 V, Output Voltage: 0.4 to 2.4 V

Temperature

  • Operating Temperature
    0 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Fiber Core Diameter
    50, 62.5 µm, 9 µm
